MMS Energetic Ion Spectrometer

From SPEDAS Wiki
Jump to navigation Jump to search
EIS Quick Look plot in SPEDAS

SPEDAS provides command line and GUI access to the MMS EIS data.


For more information on the EPD-EIS instrument, please see the EPD Data Products Guide:

https://lasp.colorado.edu/mms/sdc/public/datasets/epd/ (EPD Data Products Guide 13Apr16 v4)

EIS Data

For more complete examples, see the EIS crib sheets located in the /projects/mms/examples/ folder.

Examples

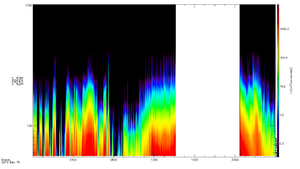

H+ Flux

To load and plot the MMS1 EIS H+ Flux for all channels on December 15, 2015: <syntaxhighlight lang="idl"> MMS> trange=['2015-12-15', '2015-12-16']

MMS> mms_load_eis, probes=1, trange=trange, datatype='extof', level='l2'

MMS> tplot, '*_extof_proton_flux_omni_spin'

</syntaxhighlight>

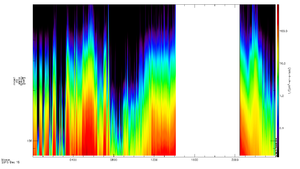

He++ Flux

To load and plot the MMS1 EIS He++ Flux for all channels on December 15, 2015: <syntaxhighlight lang="idl"> MMS> mms_load_eis, probes=1, trange=['2015-12-15', '2015-12-16'], datatype='extof', level='l2'

MMS> tplot, '*extof_alpha_flux_omni_spin'

</syntaxhighlight>

Electron Data

To load and plot the MMS3 electron (electronenergy) data on December 15, 2015: <syntaxhighlight lang="idl"> MMS> mms_load_eis, probe=3, trange=['2015-12-15', '2015-12-16'], datatype='electronenergy', level='l2'

MMS> mms_eis_pad, probe=3, species='electron', datatype='electronenergy', data_units='flux', level='l2'

MMS> tplot, ['mms3_epd_eis_electronenergy_electron_flux_omni_spin']

</syntaxhighlight>

Burst Data

To load and plot the MMS1 EIS electron data on December 15, 2015: <syntaxhighlight lang="idl"> MMS> mms_load_eis, probe=1, trange=['2015-12-15', '2015-12-16'], datatype='extof', data_rate='brst', level='l2'

MMS> mms_eis_pad, probe=1, trange=['2015-12-15', '2015-12-16'], datatype='extof', species='ion', data_rate='brst', level='l2'

MMS> tdegap, 'mms1_epd_eis_brst_extof_*keV_proton_flux_omni_pad_spin', /overwrite

MMS> tplot, 'mms1'+['_epd_eis_brst_extof_proton_flux_omni_spin', '_epd_eis_brst_extof_*keV_proton_flux_omni_pad_spin']

MMS> tlimit, ['2015-12-15/10:55', '2015-12-15/11:30']

</syntaxhighlight>

Quick Look Plots

To create EIS Quicklook Plots: <syntaxhighlight lang="idl"> MMS> .run mms_load_eis_crib_qlplots

</syntaxhighlight>
