MMS Fly's Eye Energetic Particle Sensor

From SPEDAS Wiki
Jump to navigation Jump to search
FEEPS quicklook plot in SPEDAS

SPEDAS provides command line and GUI access to the MMS FEEPS data.


For more information on the EPD-FEEPS instrument, please see the EPD Data Products Guide:

https://lasp.colorado.edu/mms/sdc/public/datasets/epd/ (EPD Data Products Guide 13Apr16 v4)


FEEPS Data

For more complete examples, see the FEEPS crib sheets located in the /projects/mms/examples/ folder.

Examples

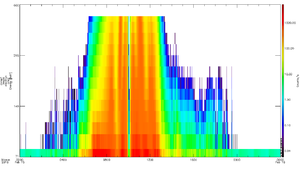

Electron Data

To load and plot the MMS1 FEEPS electron data on March 7, 2016: <syntaxhighlight lang="idl"> MMS> mms_load_feeps, datatype='electron', trange=['2016-02-15', '2016-02-16'], probe=1, data_rate='srvy'

MMS> tplot, 'mms1_epd_feeps_srvy_l2_electron_intensity_omni_spin' </syntaxhighlight>

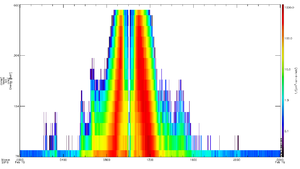

Ion Data

To load and plot the MMS1 FEEPS electron data on March 7, 2016: <syntaxhighlight lang="idl"> MMS> mms_load_feeps, datatype='ion', trange=['2016-02-15', '2016-02-16'], probe=1, data_rate='srvy'

MMS> tplot, 'mms1_epd_feeps_srvy_l2_ion_intensity_omni_spin' </syntaxhighlight>

Quicklook Plots

To create FEEPS quicklook plots, see the crib sheet: mms_load_feeps_crib_qlplots.pro

<syntaxhighlight lang="idl"> MMS> .run mms_load_feeps_crib_qlplots </syntaxhighlight>

FEEPS Sector Spectrograms

Examples

Sector-Time Spectrograms, No Sun Contamination Removed

To create sector spectrograms of FEEPS data on January 20, 2016: <syntaxhighlight lang="idl"> MMS> mms_load_feeps, trange=['2016-01-20/19:50', '2016-01-20/19:55'], probe=1, data_rate='brst', level='l2', /time_clip

MMS> mms_feeps_sector_spec, probe=1, data_rate='brst'

MMS> tplot, ['mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_3_sectspec', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_4_sectspec', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_5_sectspec', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_10_sectspec', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_11_sectspec'] </syntaxhighlight>

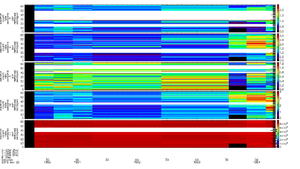

Sector-Time Spectrograms, With Sun Contamination removed

To create sector spectrograms of FEEPS data on January 20, 2016: <syntaxhighlight lang="idl"> MMS> mms_load_feeps, trange=['2016-01-20/19:50', '2016-01-20/19:55'], probe=1, data_rate='brst', level='l2', /time_clip

MMS> mms_feeps_sector_spec, probe=1, data_rate='brst', /remove_sun

MMS> tplot, ['mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_3_sectspec_sun_removed', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_4_sectspec_sun_removed', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_5_sectspec_sun_removed', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_10_sectspec_sun_removed', 'mms1_epd_feeps_brst_l2_electron_bottom_count_rate_sensorid_11_sectspec_sun_removed'] </syntaxhighlight>
